Description
90-Minute Rated Wire Glass – Fire, Safety, and Security – triple protection all in one

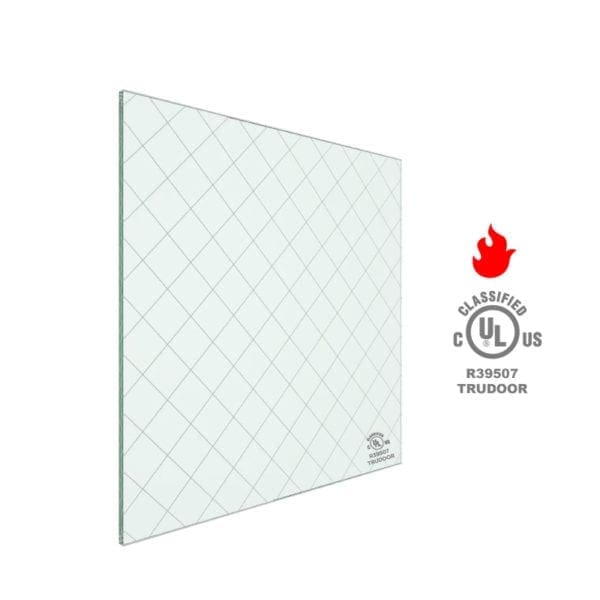

Protect3™ Safety Glass provides FIRE, SAFETY and SECURITY protection all in one. It’s an attractive and economical glazing solution for high traffic areas requiring fire-rated glazing. It’s perfect for schools, hospitals, institutions and commercial projects. Protect3™ Safety Glass is a ¼” (6mm) thick glazing material consisting of fire-rated wire glass with a surface applied fire-rated and impact-safety rated film.
Commercial Door and Hardware® is certified by UL, enabling us to cut, re-certify and label Protect3™ Wire Safety Glass and Fire-protection-rated Glazing Materials.
1/4″ w/ Embedded 3/4″ x 3/4″ Wire Mesh
CAT II Impact-Rated (Safety Glass)
UL Classified and Labeled – Fire-rated up to 90 minutes with hose stream
Permanently etched with UL Classification
Passes 400 ft-lb impact tests
Passes air blast testing – minimum Level 3 @ 4.0 PSI
Economical alternative to ceramic glass
Glass Approvals: ANSI Z97.1 and CPSC 16CFR1201 (Cat. I and II)
Custom size fire-rated wire glass with 45-minute certification available.
Classified and labeled by Underwriters Laboratories, Inc. for the United States and Canada with File-No. R39507. All fire tests performed in accordance with UL 9, UL10C, UBC 7-2 (1997), UBC 7-4 (1997), NFPA 257, NFPA 80, ASTM E2010-01, ASTM E2074-00, ULC CAN4-S104, and ULC CAN4-S106. Note: This product is not considered a barrier to radiant heat and has not met the ASTM E-119 or UL 263 test standards
Labeling: After cutting, each lite of Protect 3™ Safety Glass fire-protective glass shall be permanently labeled according to local building code requirements with product and manufacturer’s name, UL certification mark, fire rating, etc.
Please refer to IBC code Chapter 7 (International Building Code) for fire-rated glass requirements and limitations. Frame, door and/or hardware must also be fire-rated. Fire-rating requirements must match the glazing requirements in order for the assembly to fully meet code requirements. Please refer to manufacturers’ specifications. Please Consult with your door and frame manufacturer’s procedures, for their maximum glass size tested. Interpretation of building and fire codes may vary. Consult with the local authority having jurisdiction to determine appropriate standards in your area. Commercial Door and Hardware assumes no liability or responsibility for any damage to person or property resulting from or incident to the use of the products that we provide. Commercial Door and Hardware assumes no liability or responsibility for misspecified and/or misordered materials. Glass is cut to order and non-returnable or refundable.
Commercial Door and Hardware is certified by UL to cut, re-certify and label fire-rated glazing materials. Our facility undergoes routine inspections to verify that modifications are done in compliance with the requirements of the UL specification listings. All material is tested in accordance with NFPA codes and standards.
Protect3 is a trademark of Glassopolis
Glass is cut to order and non-returnable or refundable.
Call 1-844-Commercial Door and Hardware (844-878-3667) for info on custom sizes and volume discounts
